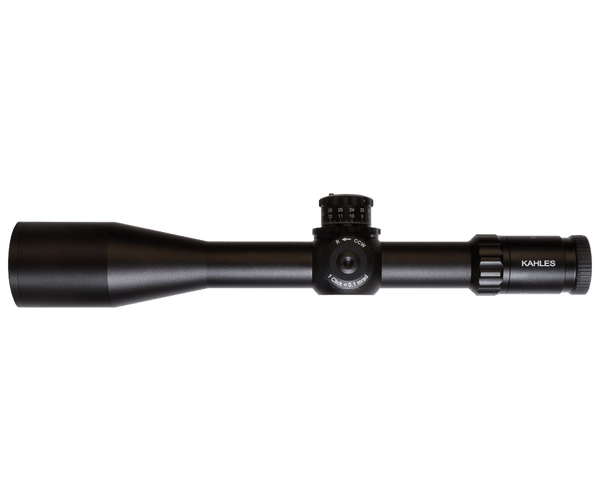

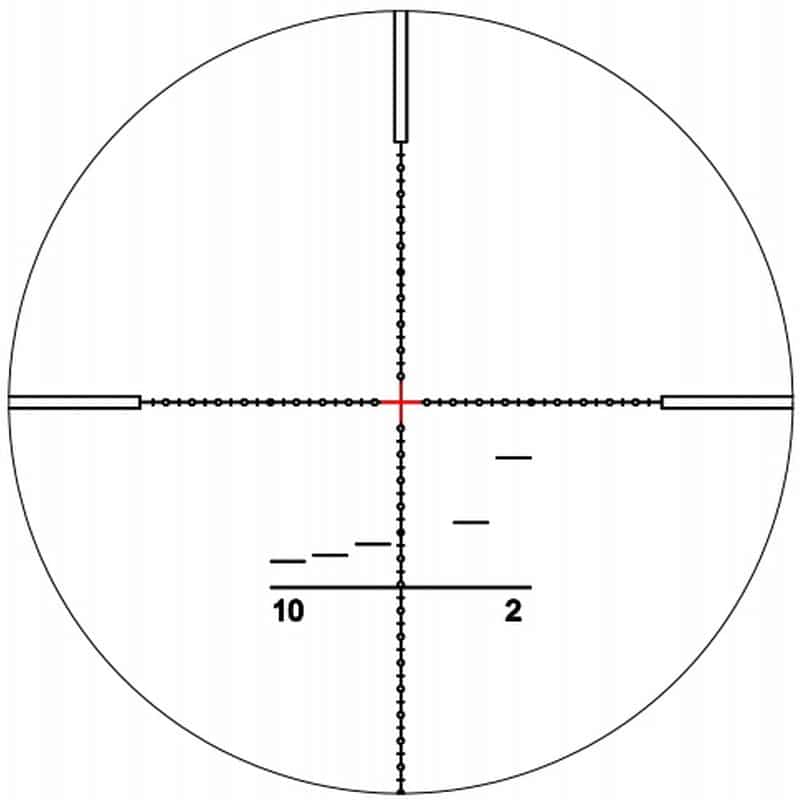

K624I 6-24X56I RIFLESCOPE – MIL4 RETICLE

he K624i sets standards in handling and ergonomics thanks to the unique arrangement of its operating elements. It offers outstanding optical performance, mechanical perfection and a unique range of well proven reticles for professionals and competition shooters.

FEATURES

• Wide field of view, exceptionally comfortable eyebox and high contrast image
• Precise, clearly defined click mechanism and reliable repeat accuracy
• Optional left or right side windage

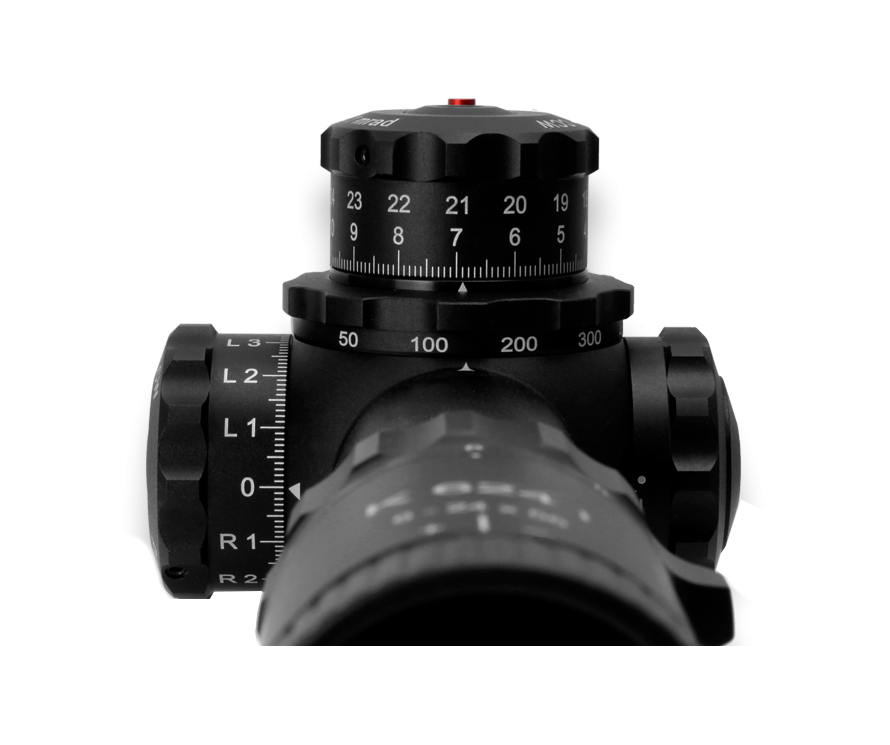

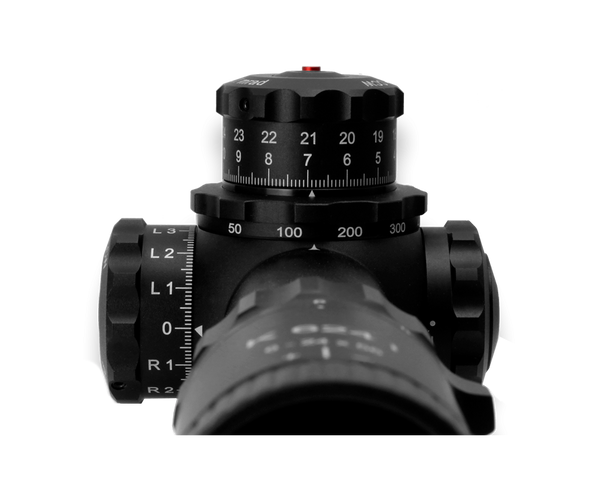

• Parallax wheel integrated into the elevation turret (patented) (50 m to ∞)
• Precise illuminated reticles in 1 st focal plane

SPECIFICATIONS

• Magnification: 6 – 24
• Objective lens diameter: 56 mm
• Exit pupil: 9.4-2.3 mm
• Eye relief: 90 mm
• Field of view: 6.8 – 1.7 m/100 m
• Diopter compensation: +2 / -3.5 dpt
• Twilight factor (DIN 58388): 18.3 – 36.7
• Impact correction per click: 0.1 MRAD; ¼ MOA
• Adjustment range (E/W): 2.5/1.1 m/100 m
• Parallax adjustment: 50 m till ∞
• Tube diameter: 34 mm
• Length: 405 mm
• Weight: 950 g
• Focal plane: 1
• Illuminated: Yes
